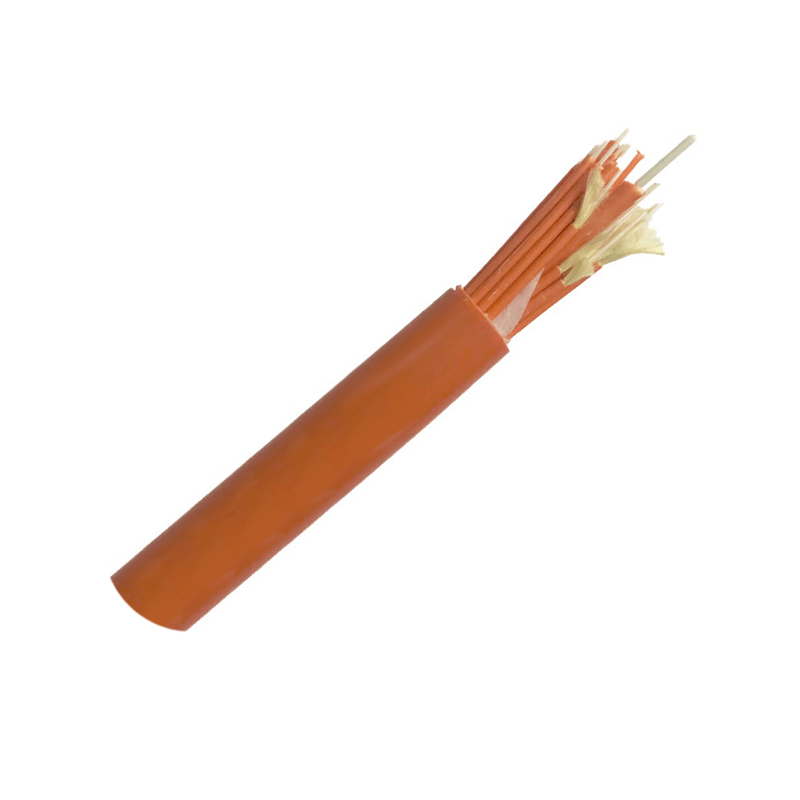

Factory Price Excellent Performance Simplex Indoor Multi-Mode Fiber Optic Cable GJFJV/H OEM
Simplex Indoor Cable Structural parameter
|
Cable type
|
Cable diameter (mm)
|
Optical cable reference weight (kg/km)
|
Fiber buffer fiber diameter (mm)
|
Tensile Strength
Long/short term
(N)
|
Crush resistance Long/short term (N/100mm)
|
Bending Radius Dynamic/static (mm)
|
|
SXC-1.6
|
1.65±0.05
|
2.6
|
0.6±0.05
|
40/80
|
100/500
|
60/30
|
|
SXC-2.0
|
1.95±0.05
|
3.5
|
0.9±0.05
|
60/100
|
100/500
|
60/30
|
|
SXC-3.0
|
2.85±0.05
|
6.5
|
0.9±0.05
|
60/100
|
100/500
|
60/30
|
Optical characteristics
|
Fiber type
|
Attenuation
|
Full injection bandwidth
|
Effective mode bandwidth
|
10G Ethernet link length
|
Minimum bend radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
/
|
|
Normal
|
Max
|
Normal
|
Max
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
7.5
|
|
OM2
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
>500/500
|
-
|
-
|
30
|
|
OM1
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
>200/500
|
-
|
-
|
30
|
|
OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
>1500/500
|
>2000
|
<300
|
30
|
|
OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
>3500/500
|
>4700
|
<550
|
30
|
Transportation &operating temperature: -20°C~+60°C
Ordering information
|
Cable diameter
|
1.6-Ψ1.6mm, 2.0-Ψ1.95mm, 3.0-Ψ2.85mm
|
|
Fiber type
|
B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1 = 50/125, A1b=62.5/125, OM3= Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550
|
|
Outer jacket material
|
V-PVC, Z-LSZH
|
|
Outer jacket color
|
Refer to Chromatogram
|
|
Marking &Package
|
Per customer's request or factory standard
|
Note:
1.Delivery length can be customized according to customer's requirements.
2.Chromatogram as below:
|
No.
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Color
|
Blue
|
Orange
|
Green
|
Brown
|
Gray
|
White
|
|
No.
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Red
|
Black
|
Yellow
|
Violet
|
Pink
|
Aqua
|
