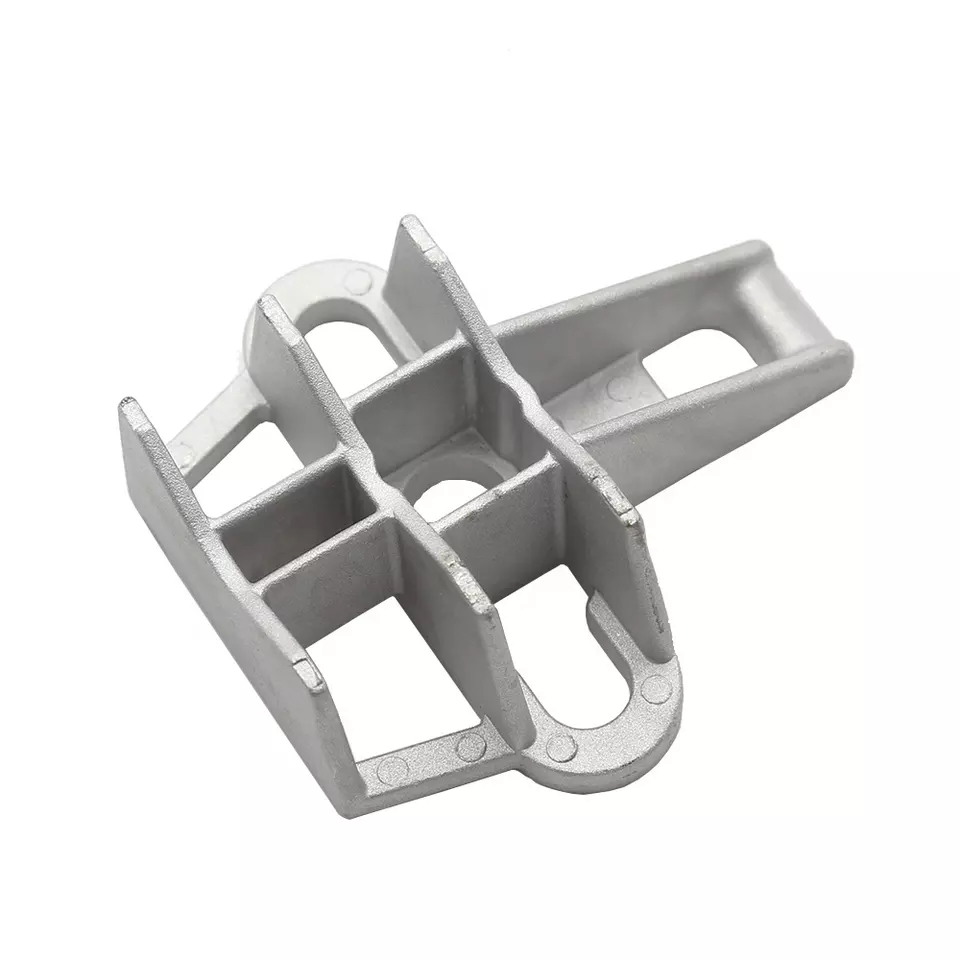

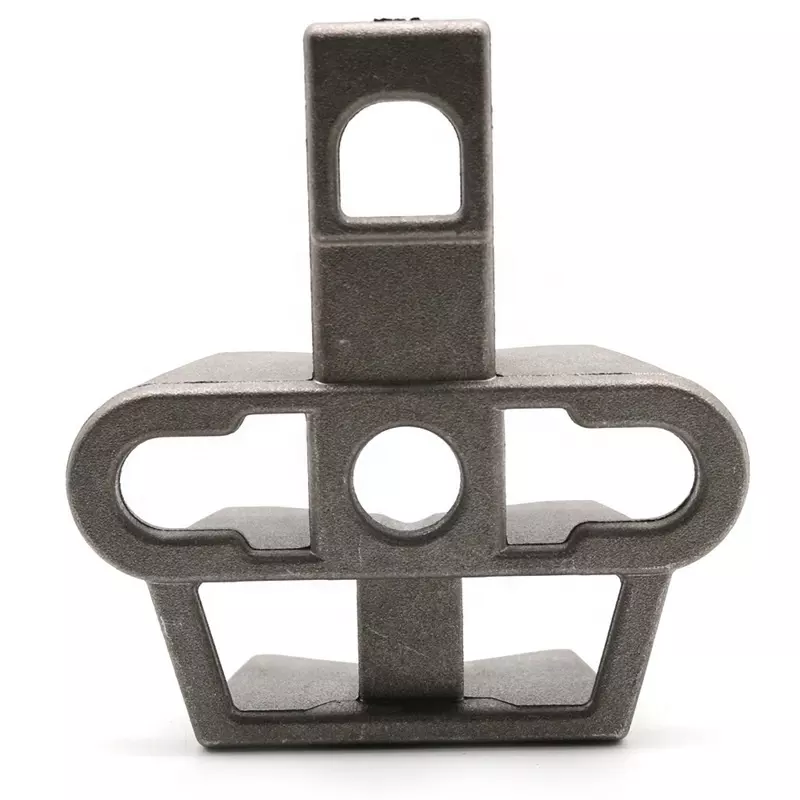

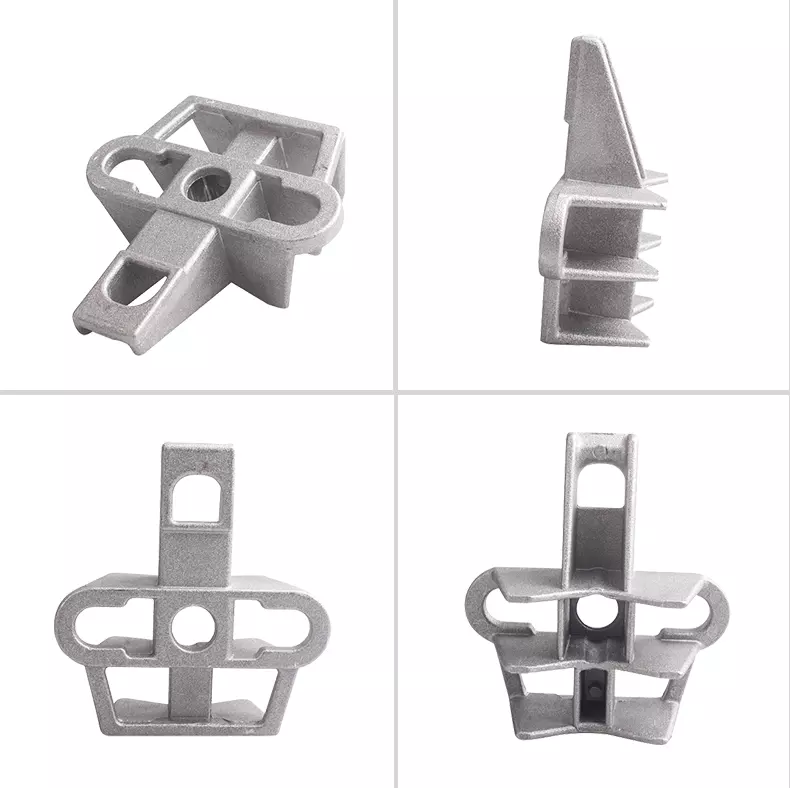

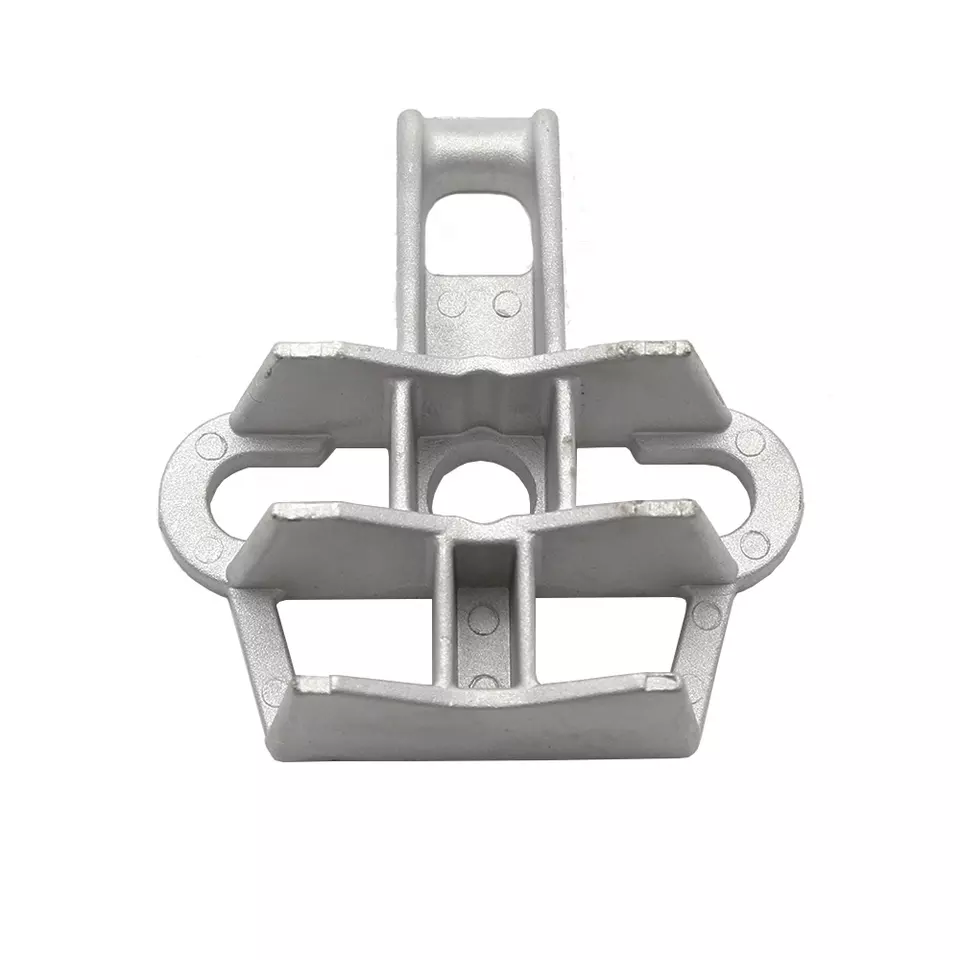

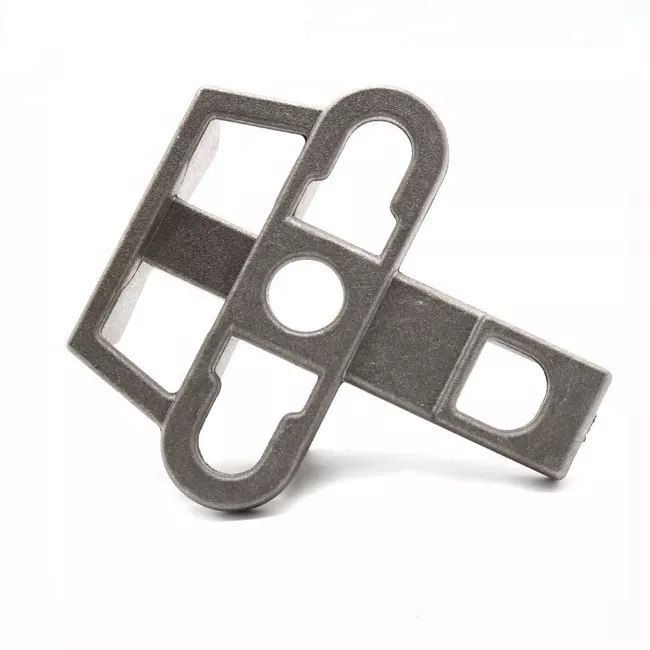

Overhead Metal Universal Pole Bracket Accessories Hanging Tension Clamp UPB

The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

Application: With steel bands The UPB bracket can be installed on any type of pole – drilled or undrilled– with two 20x0.7 mm stainless steel bands plus two buckles . Usually allow two bands of one meter each per bracket. With bolts If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).

Technical Characteristics:

Installation:

1.With bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).

2.With steel bands
The UPB bracket can be installed on any type of pole - drilled or undrilled - with two 20x0.7 mm stainless steel bands plus two buckles. Usually allow two bands of one meter each per bracket.

Application:
