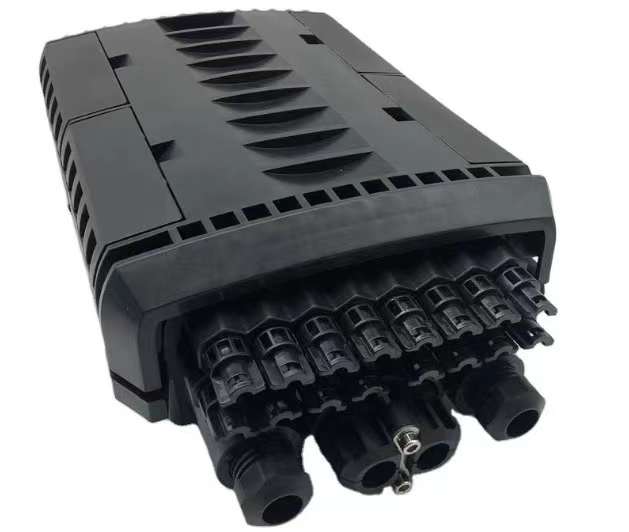

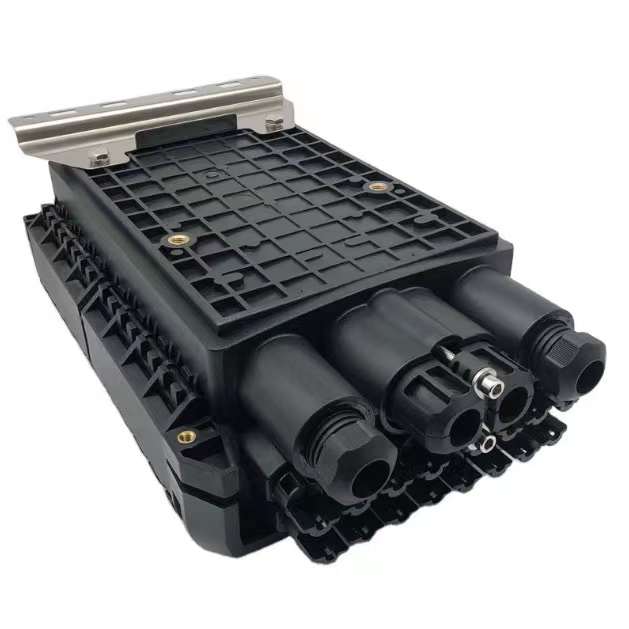

Outdoor IP65 Waterproof 16 Core FTTH Wall-Mounted Fiber Optical Splice Box Terminal Box Splice Closure Caixa Nap CTO Box Junction Box Distribution Box

distribution box

Outdoor IP65 Waterproof 16 Core FTTH Wall-Mounted Fiber Optical Splice Box Terminal Box Splice Closure Caixa Nap CTO Box Junction Box Distribution Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features: 1. Total enclosed structure. 2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65. 3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one. 4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance. 5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation. 6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Applications :

1)FTTH access network

2)Telecommunication network

3)CATV networks

4)Data communications network

5)Local area networks

Parameter

Size	32208.5
Materials	ABS+PC
Mounting Type	Wall mounted Pole Mounted Aerial Mounted
IP Level	IP65
Application	Outdoor FTTA, FTTX
Splice tray	2 pcs splice tray
Outports Adapters	8pcs Huawei Mini SC adapters
