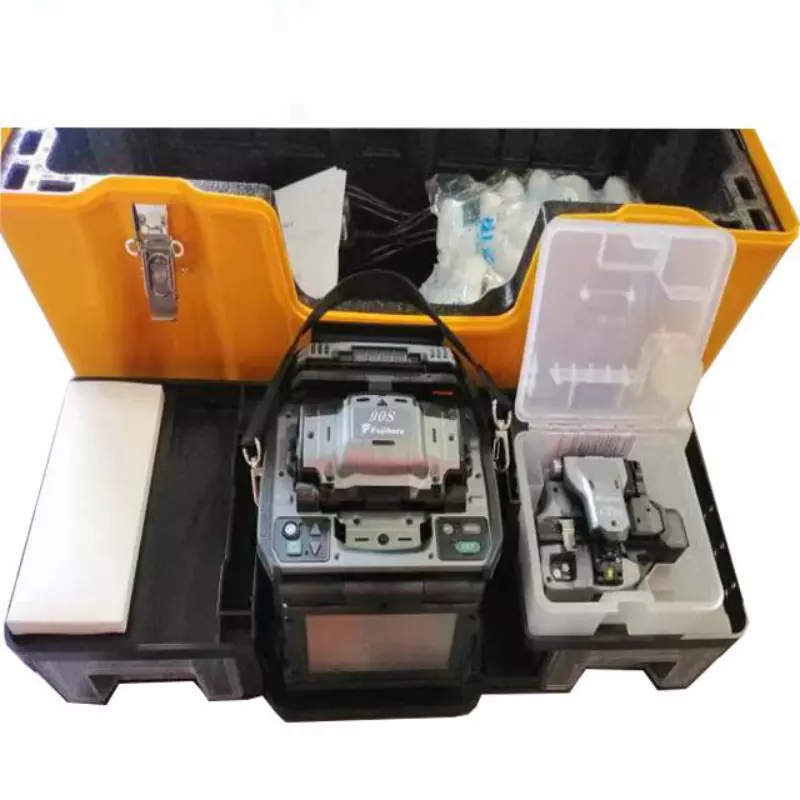

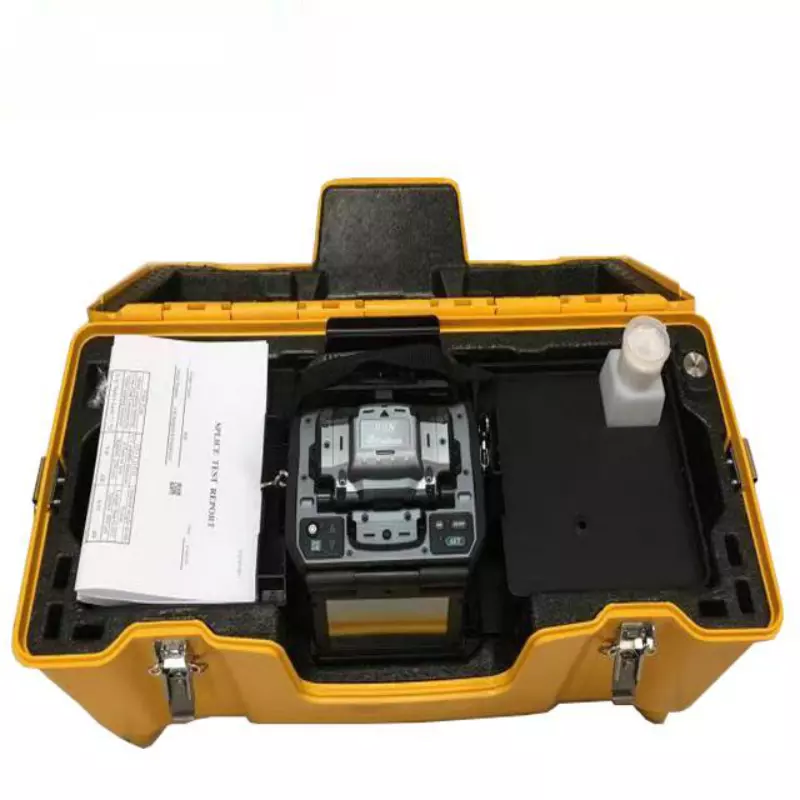

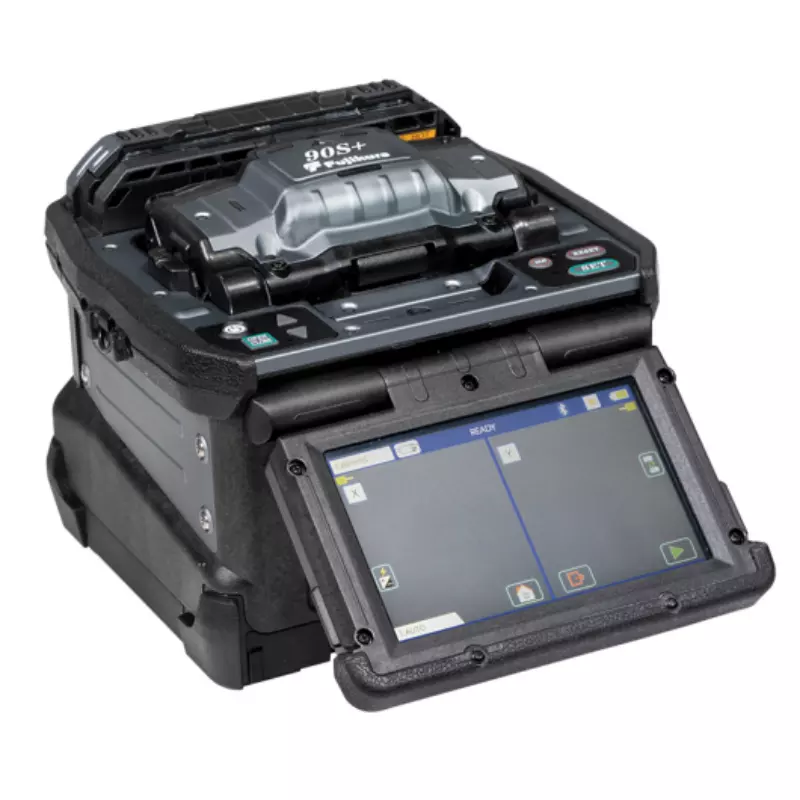

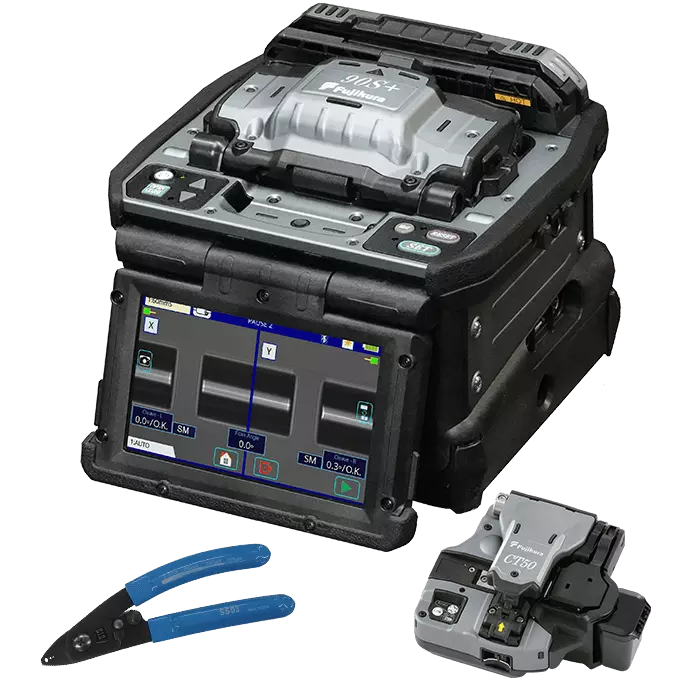

New Fusion Splicer original Japan splicing machine FSM-90S+ with CT-50 Cleaver fiber optic equipment,English Firmware
|
item
|
value
|
|
Model Number
|
FSM-90S+
|
|
Type
|
Fiber fusion splicer
|
|
Place of Origin
|
China
|
|
Use
|
FTTH FTTB FTTX FTTO Network
|
|
Warranty Time
|
3 year
|
|
Network
|
ONVIF
|
|
Welding Time
|
SM FAST(Avg.8-10sec.),SM AUTO(Avg.11-13sec.),AUTO(14-16sec.)
|
|
Display
|
2 Axis CMOS Camera With 5.0 inch Color LCD
|
|
Fiber
|
Single Mode/Multi Mode Optical Fiber
|
|
Heating Time
|
60 mm slim(Avg. 9-10sec.),60 mm(Avg.13-15 sec.)
|
|
Average Splice Loss
|
ITU-T G.652(0.02dB),G.651(0.01dB),G.653/654/655(0.04dB),G.657(0.02dB)
|
|
Coating Diameter
|
100~1000um
|
|
Cladding Diameter
|
80~150um
|
|
Cleave Length
|
5~16mm
|
|
Protection Sleeve Length
|
Max 66 mm
|
|
Battery module
|
6380mAh, >300 times splicing and heating
|
|
Battery module
|
6380mAh, >300 times splicing and heating
|
|
Language
|
Multi-language
|
|
Electrode life
|
Approx. 5000 splices
|
|
Weight
|
14.2kg
|
|
Size
|
59*44*39cm
|
