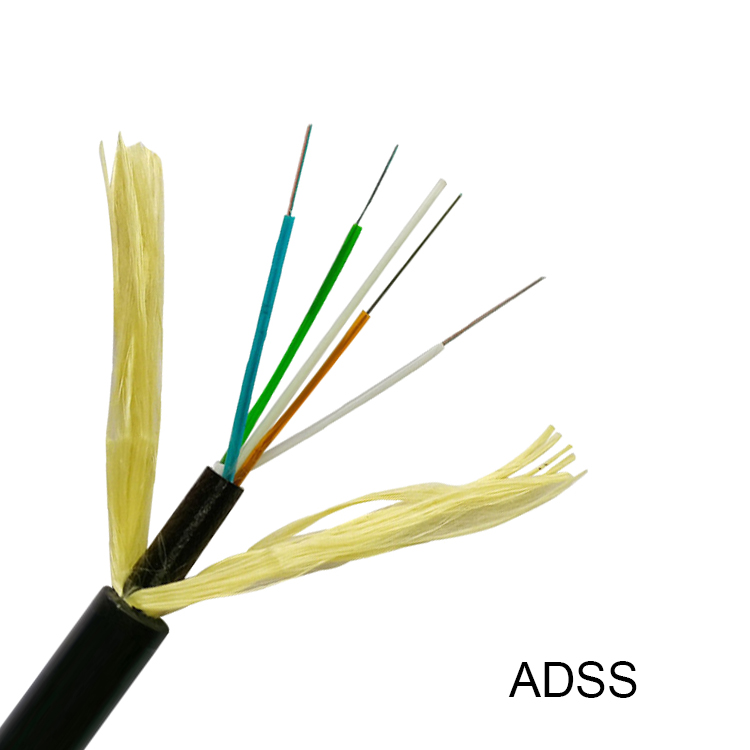

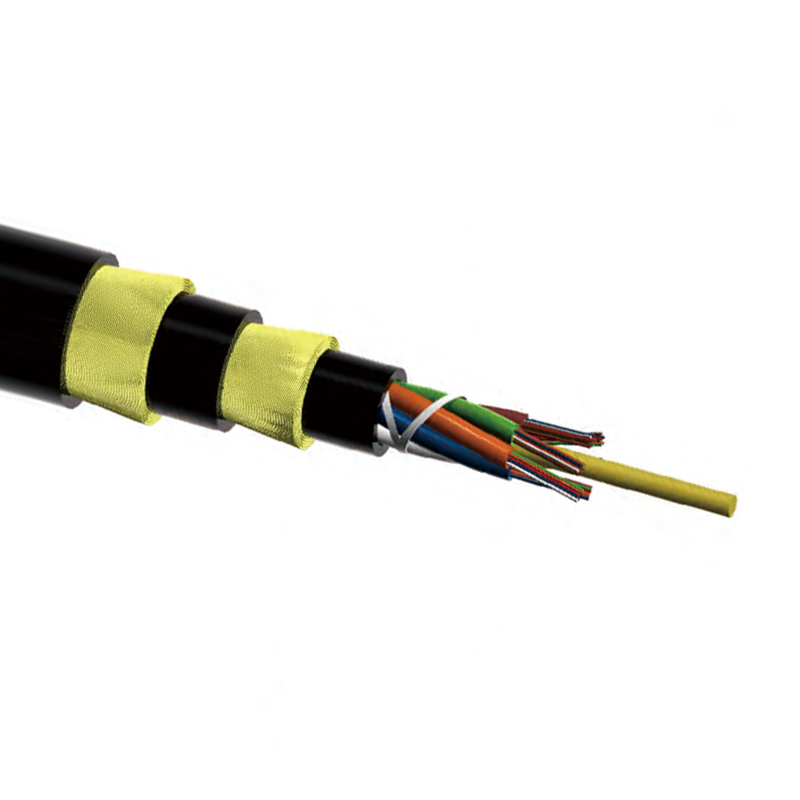

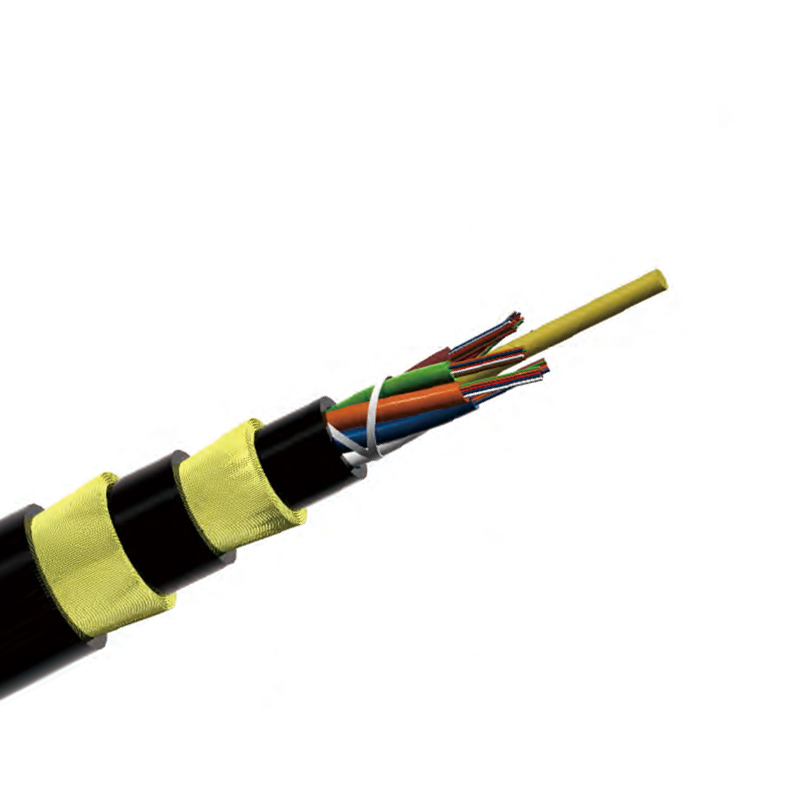

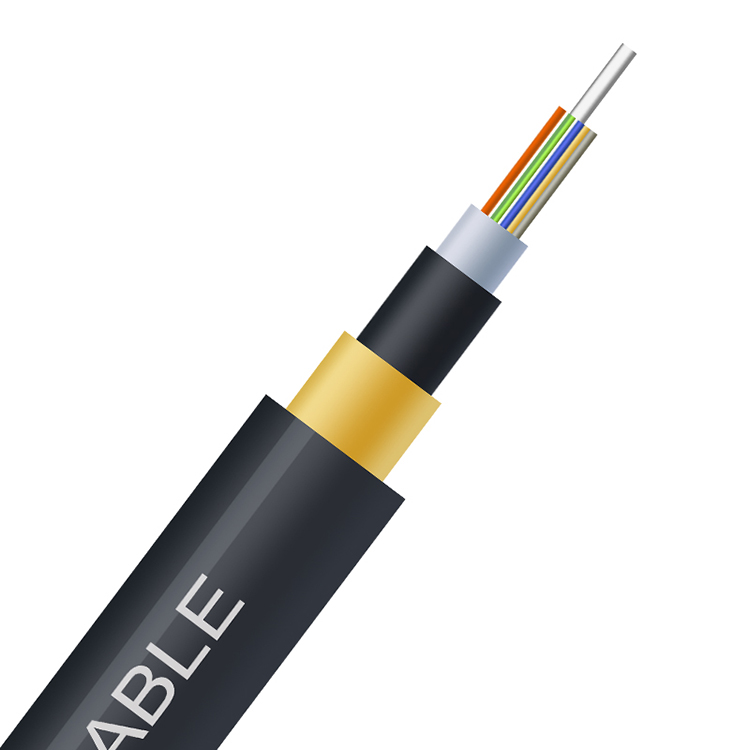

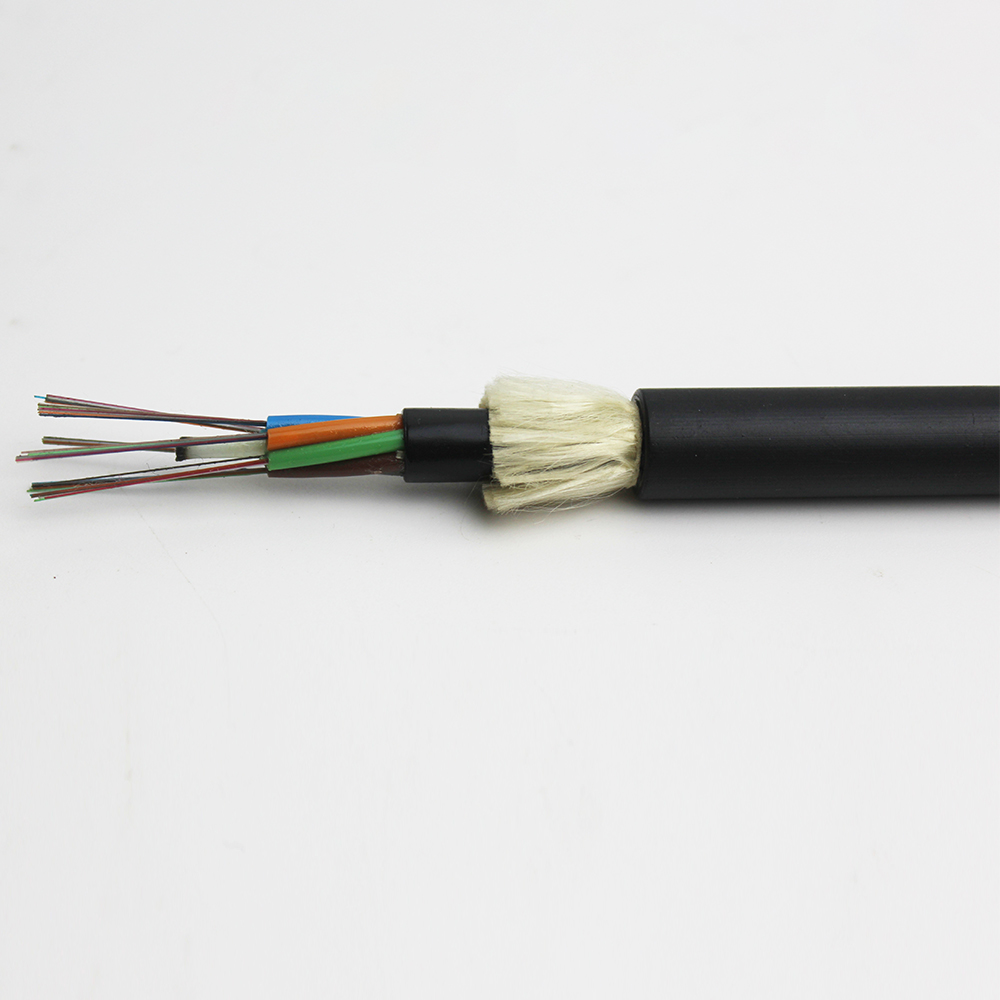

ADSS cable is loose tube stranded. 250μm are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
2. Technical Specification
| Model Number | ADSS |
| Type | Coaxial |
| Number of Conductors | >=10 |
| Application | Aerial fiber cable |
| Function | Delivery signal light |
| Certification | ADSS pass ISO9001,UL,TIL,CE |
| Sheath material | PE or AT for ass fiber optic cable |
| Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
| Length per roll | 2km/3km/4km ADSS fiber |
| Marketing | printing |
| Fiber count | 2 core to 288 core |
| Strength member | FRP |
