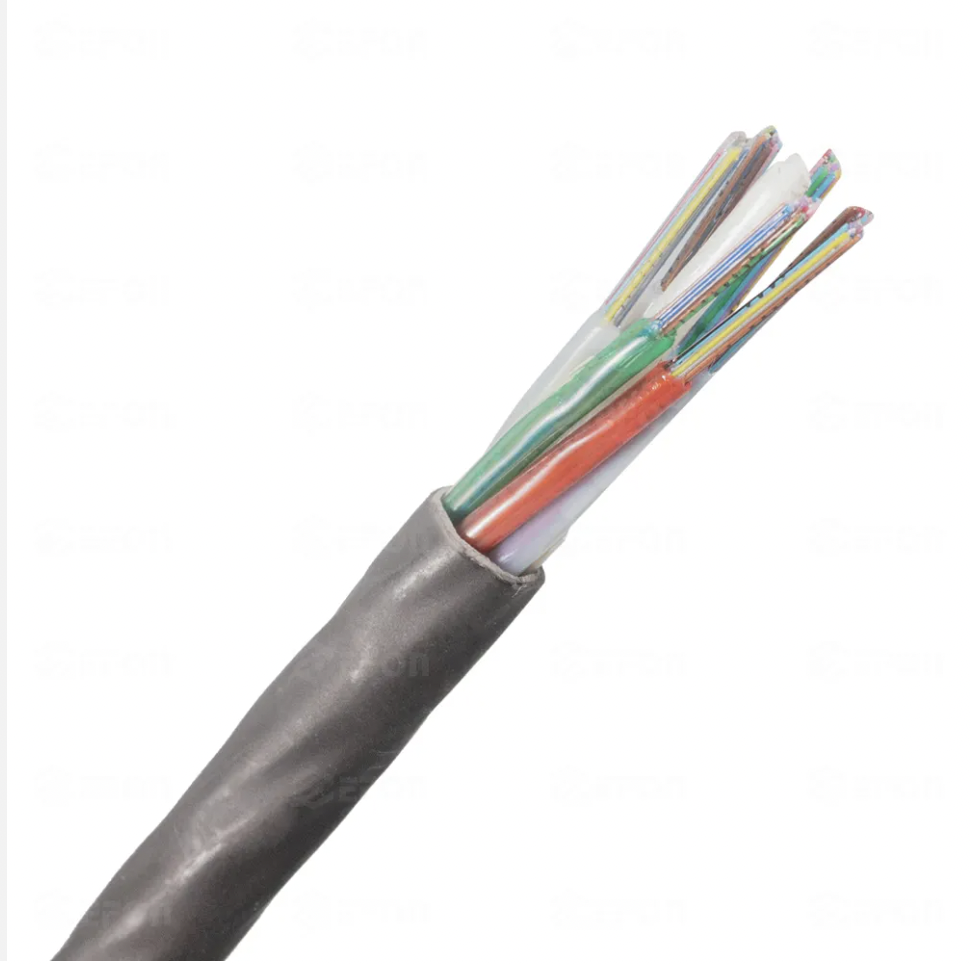

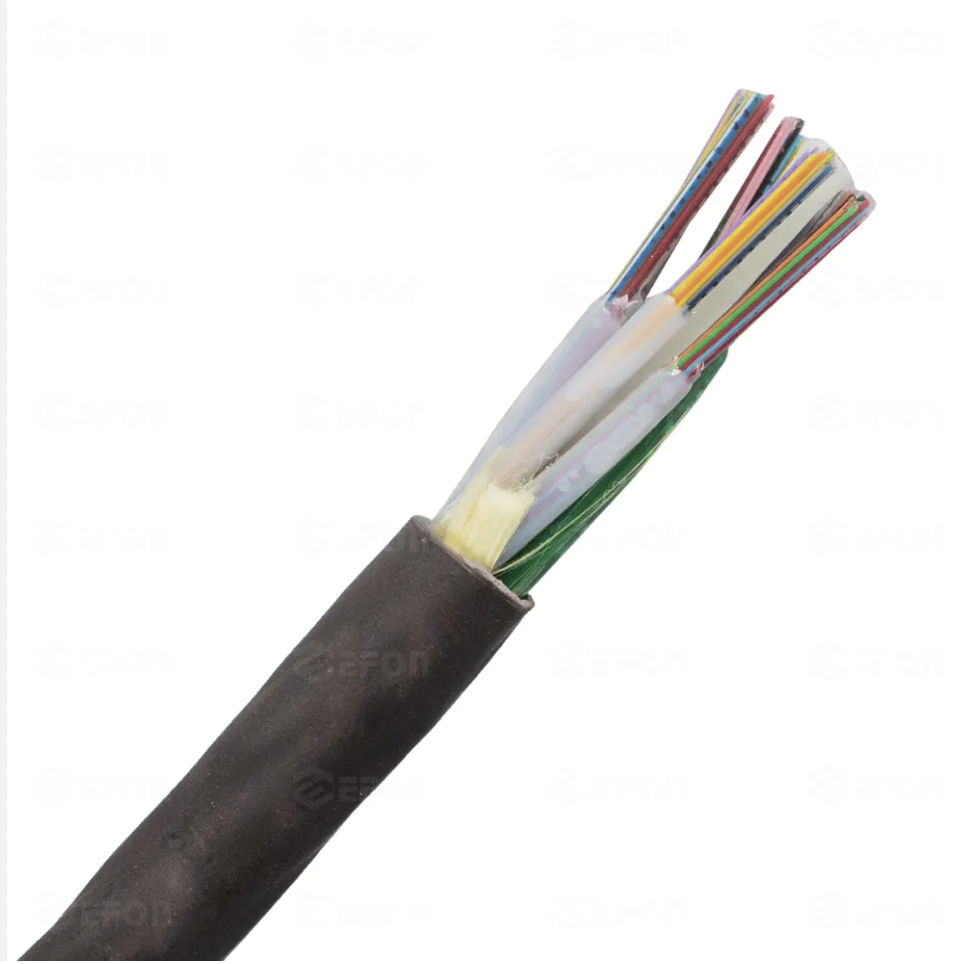

Good Weather Resistance HDPE/LSZH jacket Multi tube 72cores 96cores 144cores Micro Air Blown Cable
GYFTY Single Jacket None Metallic optical fiber cable are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.

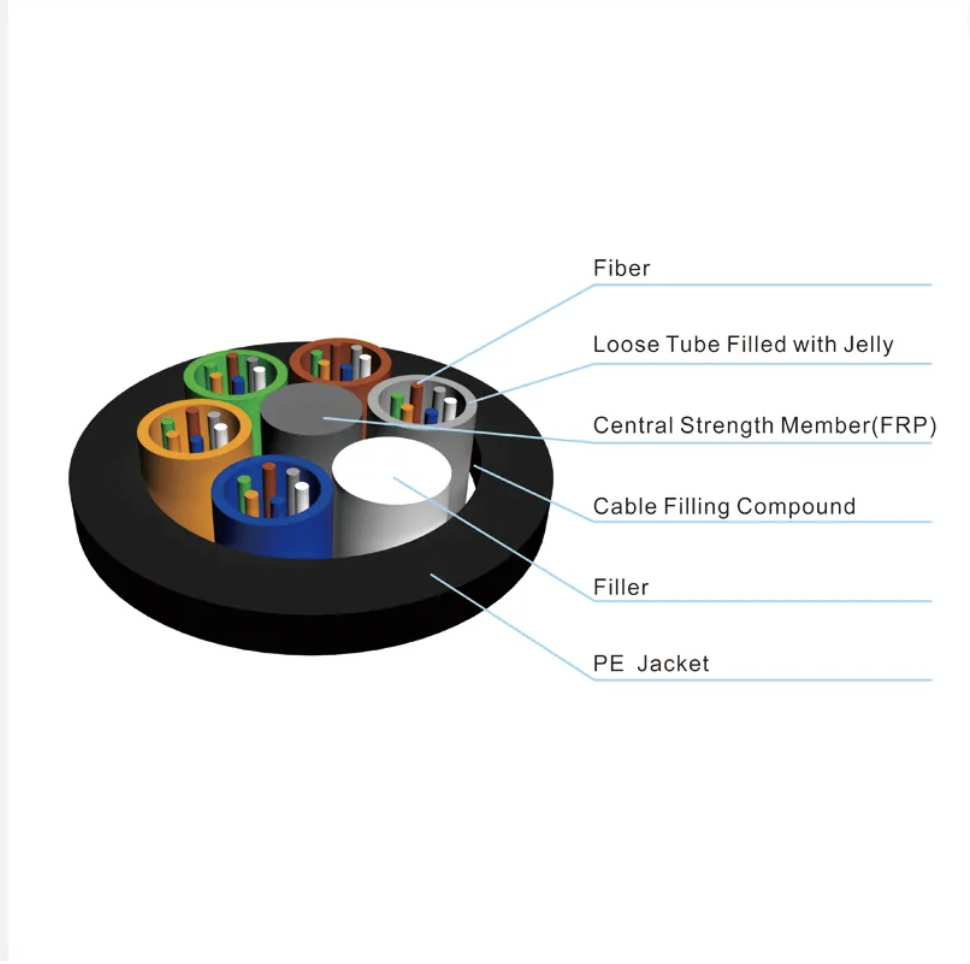

Fiber:
2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP).
Outer Jacket:
Black UV Polyethylene(PE)
Features:
* Up to 288 fibers.
* Loose tube gel-filled construction for superior fiber protection.
* Corrugated steel tape armor to protect cable from mechanical damage.
* UV and waterproof design.
Application:
* Interbuilding voice or data communication backbone.
* Installed in duct, underground conduit .
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max No. of
(Tubes+fillers)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~36
10.2
85
6
6
1500
600
1000
300
38~72
11.1
100
12
6
1500
600
1000
300
74~96
12.6
130
12
8
1500
600
1000
300
98~120
14.1
162
12
10
1500
600
1000
300
122~144
15.9
204
12
12
1800
600
1000
300
146~216
15.9
205
12
18(2 layers)
2200
600
1000
300
>144
Available upon customer request
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
