1500m/min Optical Fiber Coloring and Rewinding Machine for Fiber Optic Cable production
| Advantages | 1. High standard quality, key eletric components are original international brand. |
| 2. ensure you can find us for support at any time. | |
| 3. We do not only produce fiber cable production line machine, but also produce fiber cable to helps ourself to insist on improving our machine in time. | |
| 4. We have rich experience machine and cable manufacture, enough training technicians. | |
| 5. We have a large professional teams for pre-sales and after sales services. | |
| 6. After sales service for free spare parts, online support, field installation, commissioning and training, field maintenance and repair service, vedio technical support. | |
| 7. Advanced technology applied to our machine with the times. | |
| 8. Support with cable raw material information and cable production technology. | |
| 9. ISO9001, ISO14001, OHSAS18001 certified, CE certified support. | |
| 10. Techical Datasheets, Machine Inventment Evaluation, OEM support. | |

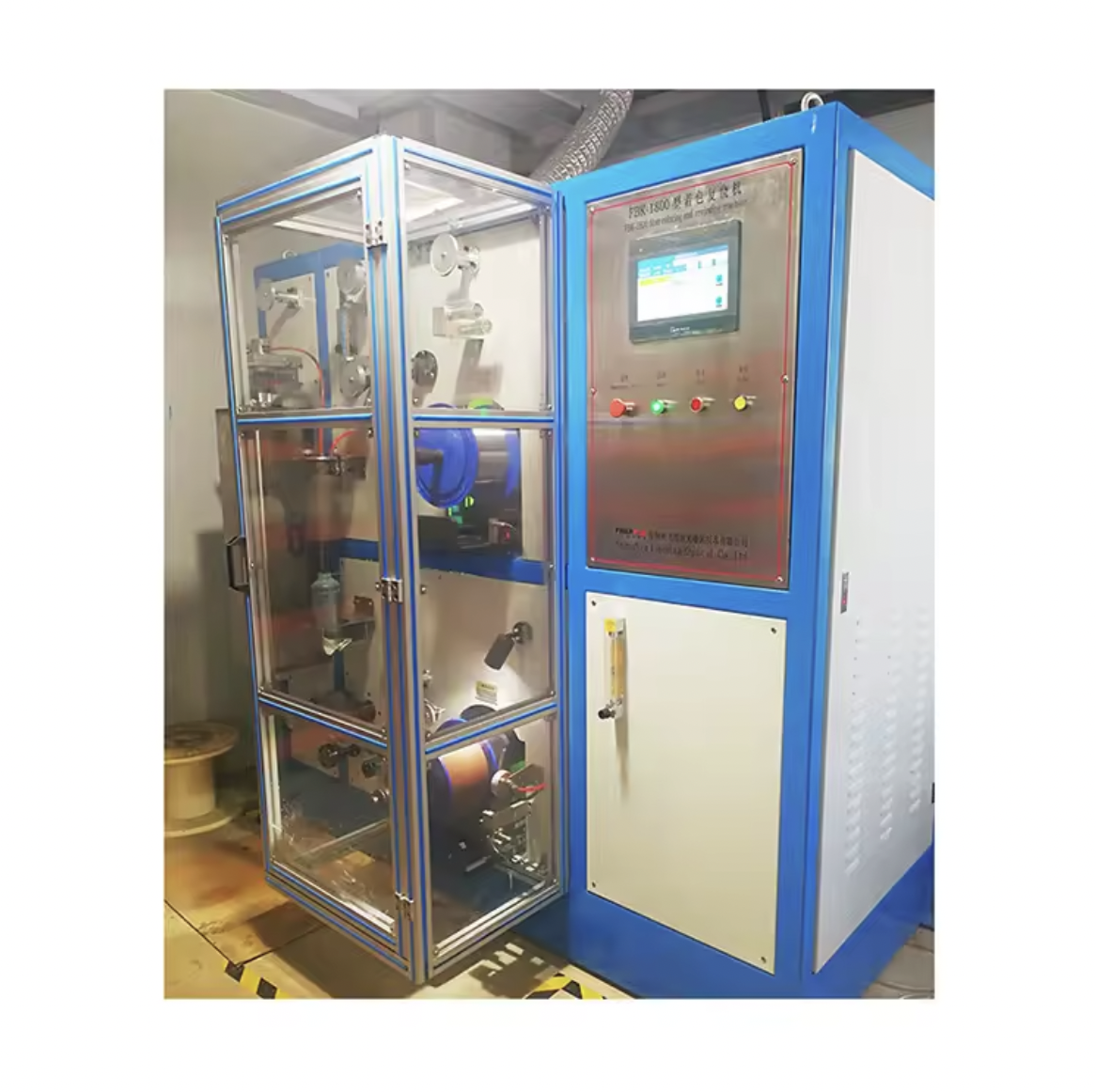

| apllication | FBK-1800 fiber coloring rewinding machine is mainly used for full color chromatographic coloring of SM and MM fibers, which is convenient for identification of multiple fibers in the PBT fiber tube or micron cables. At the same time, the device can also be used for rewinding segmentation of optical fibers. |
| Features | The use of imported UV curing furnace,effectively improve the curing effect of coloring.The equipment is controlled by SIEMENS 300 series PLC from Germany.It has high automation, one person can operate more than one machine. Support OEM according to customer's special request. |
|
Line main spec. |
1.Finished products:12 colors fibers. |
| 2.Structure speed: 1800m/min. | |
| 3.Take-up tension; 0.3N-1.2N. | |
|
4.Take-up /pay-off reel sizes: φ235mm * φ155mm * 25.4mm (outer diameter * inner diameter * shaft hole). Φ265mm*φ165mm*25.4mm (outer diameter * inner diameter * shaft hole). |
|
| 5.Additional loss: ≤ 0.02db / km (sm fiber). | |
| 6.Equipment size: 2.1m*1.5m*1.9m (L * W * H). | |
| 7.Power supply requirements: ~AC380V ±10% 50HZ three-phase five-wire. | |
| 8.The total power supply: ≈ 13 KW. | |
| 9. Normal running power is about 7KW/h. | |
| 10. Coloring capacity is about 90KM/h. |
