Outdoor FTTH Drop Fiber Optical Cable Production Line


 Outdoor FTTH Drop Fiber Optical Cable Production Line, fiber cable production line,cable production lines

Application
Special ftth optical cable line
Professional after sales service
field installation/training/online remote diagnosis
Production Capacity
About 9km/h( ftth cable 2.0X3.0mm), 7km/h( ftth cable 2.0X5.0mm)
Control System
program automatic computer control
Power Supply Request
50KVA, AC380V, 50HZ three-phase five wire
Line Diamesion
Max. 26mx3x2.5
Temp. Control
Original OMRON
Main Electric Components
Famous international brand
OEM welcome
special price for big order
Advantages 1. High standard quality, key eletric components are original international brand.
2.  ensure you can find us for support at any time.
3. We do not only produce fiber cable production line machine, but also produce fiber cable to helps ourself to insist on improving our machine in time.
4. We have rich experience machine and cable manufacture, enough training technicians.
5. We have a large professional teams for pre-sales and after sales services.
6. After sales service for free spare parts, online support, field installation, commissioning and training, field maintenance and repair service, vedio technical support.
7. Advanced technology applied to our machine with the times.
8. Support with cable raw material information and cable production technology.
9. ISO9001, ISO14001, OHSAS18001 certified, CE certified support.
10. Techical Datasheets, Machine Inventment Evaluation, OEM support.

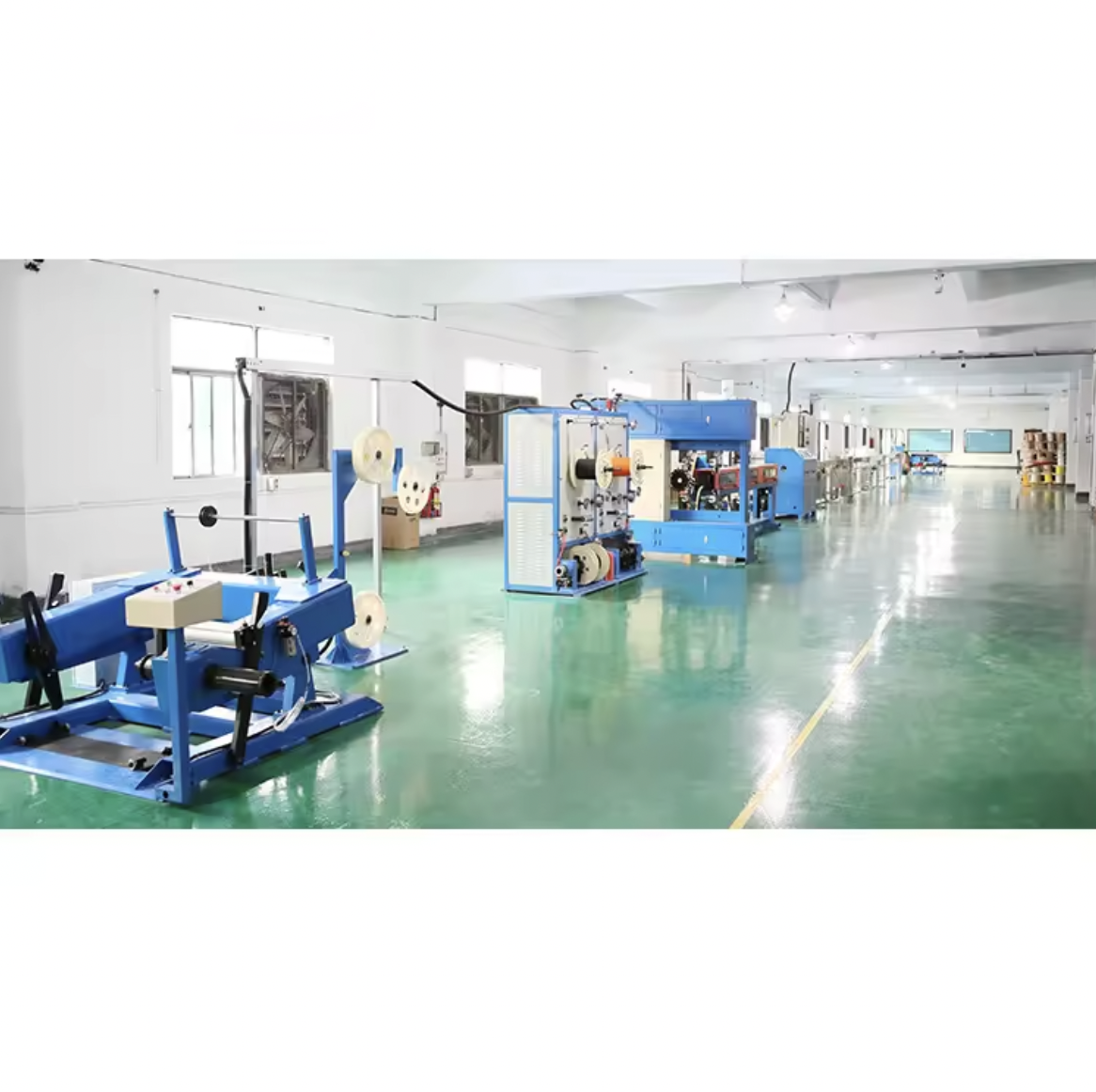

FTTH Drop Optical Fiber Cable Production line application This production line makes FTTH drop fiber optic cable 2.0x3.0mm, 2.0x5.0mm. Cable structure: bare fibers + steel wires/FRP strengthen members + LSZH/PVC/PE sheath, and other similar cables.
Features 1. Precision special extruder and precision free adjustment head, the extruder is suitable for materials such as PVC, LSZH, PE and other materials.
2. The surface of the cable is smooth.
3. Optical fibers are motorized released. The tension is precisely constant and the additional loss is small.
4. The temperature control is controlled by imported OMRON temperature control meter, and the temperature control is accurate.
5, Double-reels automatic take-up, stable and reliable operation, automatic line-receiving of the take-up line, no need to rewind.
6, International industrial computer technology control system with FIBERCAN software,  high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.
7. The main control systems and components are international famous brands, and the production line has high stability and reliability.

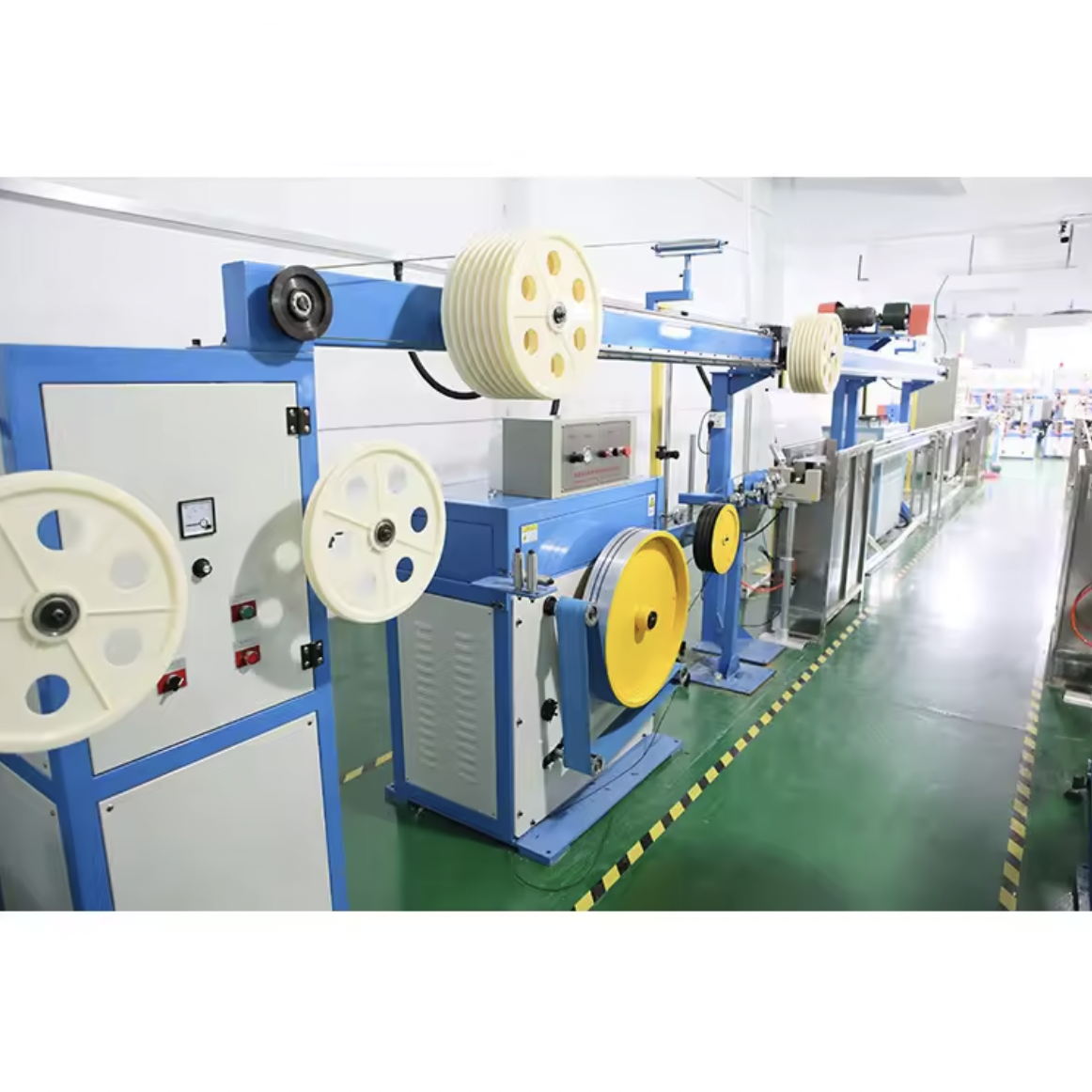

Line Configurations 1.4 heads fiber+2head FRP/small Steel wire pay-off.
2.Φ800 Stengthen member bigger steel wire pay-off.
3.Mobile mold supporting.
4.50 extruder.
5.Dryer +hopper.
6.IPC+PLC program control systerm.
7.Moving water trough and warm water tank.
8.Fixed type cooling water trough and cooling water tank.
9.Laser Diameter Gauge.
10.Dual-Wheel Capstan.
11.Cable Accumulator.
12.Dual-Wheel Take-Up.
